As an expert in the field of architecture and construction, I have seen firsthand the benefits and potential of modular construction. This innovative method of building has gained popularity in recent years, and for good reason. It offers a solution to common challenges faced by traditional construction methods, such as limited space and high costs. In this article, I will delve into the concept of modular construction, its history, advantages, and various applications.
The Origins of Modular Construction
The idea of modular construction can be traced back to the early 20th century when architect Walter Gropius first introduced the concept of a “Hausbaufabrik” or housing construction factory.This was in response to the lack of affordable housing for workers during the First World War. Gropius's first project using this method was the Torten estate in Dessau, Germany, which consisted of 314 cube-shaped terraced houses. With the German economy in crisis, there was a need to build cheaply and efficiently. Gropius's solution was to use inexpensive prefabricated hollow concrete blocks for load-bearing walls and his own Rapidbalken reinforced concrete joist system for roofs. All structural components were prefabricated off-site and then assembled using a crane.
However, despite its initial success, several construction defects were discovered after the houses were completed, leading residents to make their own modifications.
The Concept of Modularity in Architecture
Modularity in architecture involves using the same module in multiple configurations to create a variety of designs. The beauty of this approach is that any module can be easily replaced or added without affecting the rest of the structure. This offers several advantages, including reduced capital requirements and increased flexibility in design.The Process of Modular Construction

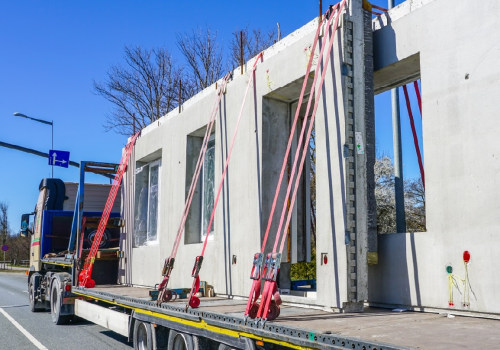

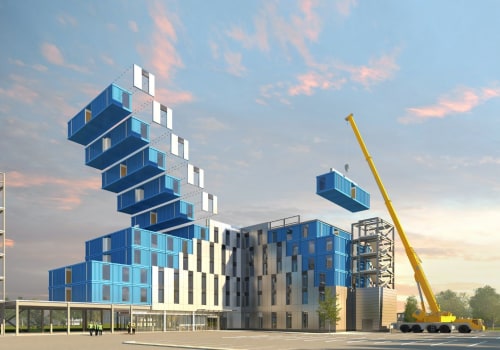

Modular construction is a process in which prefabricated buildings consist of repeated volumetric sections called modules. These modules are assembled off-site and then transported to the intended location.They can be placed side-by-side, stacked end-to-end, or in various other configurations and styles. The modules are manufactured with four closed sides, creating cell-like spaces designed to transfer the combined vertical load of the upper modules and the loads in the plane. This allows for a high level of acoustic separation, as each module has separate elements on the floor, ceiling, and walls. One of the main advantages of modular construction is its speed. The use of modules with integral corridors eliminates weather sealing problems during installation and finishing work. Alternatively, non-load-bearing modules can be supported on a main frame and installed as construction progresses.
However, in most cases, the roof space is “cold” and insulation is placed directly on top of the modular units.
Applications of Modular Construction
The most common applications for modular construction include student residences, military accommodation, and hotels. However, it is also gaining traction in the healthcare sector, where highly complex medical services and facilities can be prefabricated off-site and then deployed and tested. Modular construction can be used for both low-rise and high-rise buildings. In low-rise buildings, the set of discrete modular units usually constitutes a self-supporting structure. In taller buildings, a separate structural framework may be used to support the modules after placement.Manufacturers have developed their own patented locating and fixing mechanisms to facilitate the positioning of the units on the foundation.
Challenges and Limitations
While modular construction offers many benefits, it also presents some challenges and limitations. For example, access to service ducts is generally only possible from circulation areas outside the modular unit. Additionally, there may be interfaces between the modular units and other building components that are not under the control of the module manufacturer. Furthermore, mixed modular and panel construction is limited to buildings with 4 to 6 floors in height. Atriums can be created by attaching a light steel roof to the upper modules or by extending the roof between the modules.Ceilings can also be designed as modular units to create a living space and facilitate installation, especially in taller buildings.
Real-World Examples

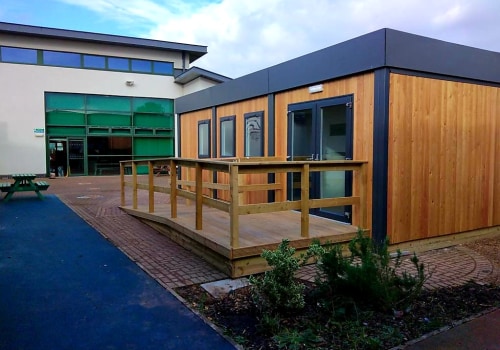

There are many real-world examples of successful modular construction projects. One notable project is My Micro, a nine-story modular residential building located in Manhattan, New York. This building consists of micro-units that were prefabricated off-site and then assembled on-site in just a few weeks. Another example is ModSkool, a low-cost modular school that can be built by the community in just a few hours and easily dismantled. This project highlights the flexibility and cost-effectiveness of modular construction.In Conclusion
As an expert in the field, I have seen firsthand the benefits and potential of modular construction.It offers a solution to common challenges faced by traditional construction methods and has various applications in different industries. While it does present some challenges and limitations, the advantages far outweigh them. I believe that modular construction will continue to gain popularity and revolutionize the way we build in the future.
